Villager 4
Villager 4 Resort
Villager 4 Resort HR

Take your potential customers for a ride with the fast and classy Club Car Villager 4, the most economical people-mover we sell.

Make a big impression with your customers with the Club Car Villager 4, the most economical people mover we sell. Whether you choose the petrol or the electric model featuring the innovative Excel™ Electric Drive System, your vehicle will be fast and classy.

Safety, comfort and durability come standard: impact and UV resistant body panels with a 360 degree bumper system; specially-designed ergonomic seats that guarantee a comfortable ride; and our exclusive aluminium chassis that eliminates rust and corrosion, extending the Club Car Villager 4 lifespan significantly.

Features

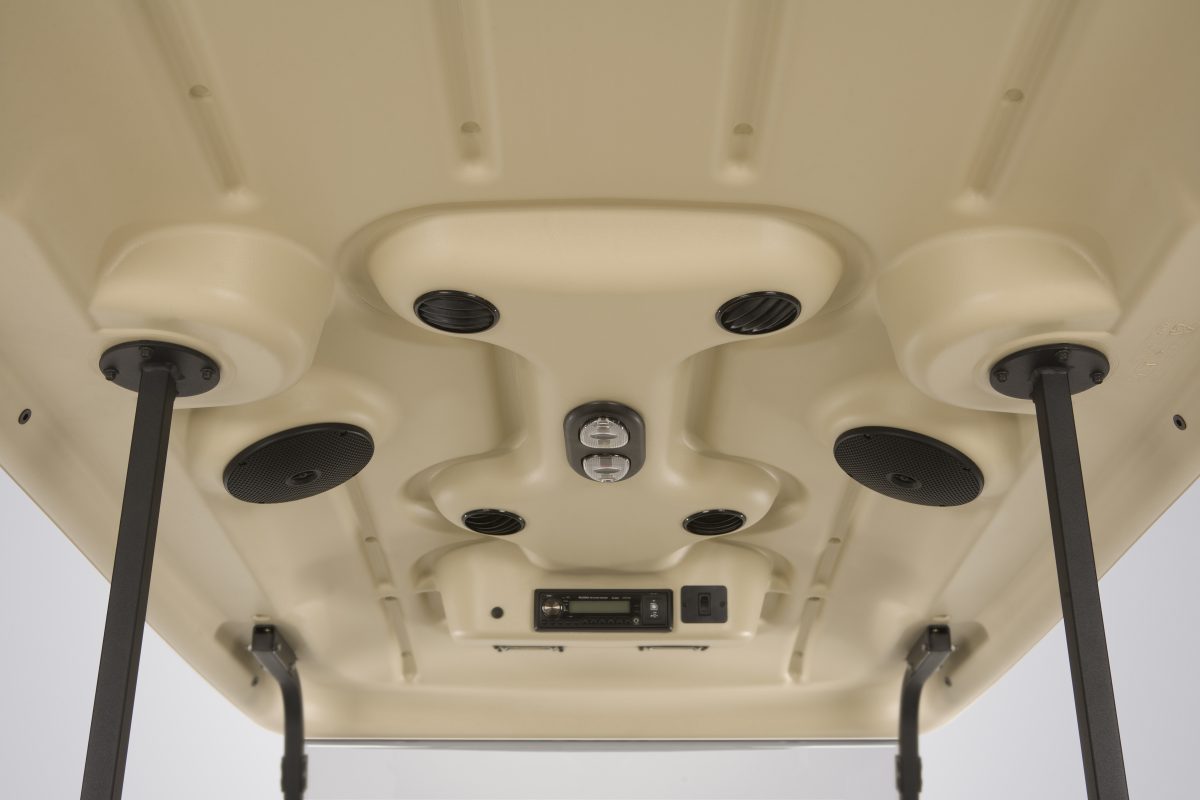

Monsoon Canopy

Monsoon Top™ XL canopy

All four occupants will stay dry and comfortable in the heaviest downpour with the Monsoon Top™ XL canopy, now standard on the Club Car Villager 4. The canopy’s increased dimensions, combined with a unique built-in drainage system, flow more than 11 litres of water per minute, or 36cms of rain per hour.

All-new EFI engine comes standard.

With a best-in-class, overhead cam, electronic fuel injection engine that delivers more horsepower, higher efficiency and lower maintenance costs, only Club Car’s Precedent with EFI can drive your operation to greater success.

Performance: Increased reliability, quieter valve train, reduced vibration, increased horsepower and improved fuel economy.

Value: The best warranty in golf means zero stress and excellent resale value.

Cost of Ownership: Time is really money with EFI. The longer it’s in the field, the greater return on your investment because it’s lower operational, maintenance and fuel costs accrue year after year, repaying your investment in long-term returns.

Fuel Economy: We chose the Subaru EX40 EFI engine for its class-leading power and reliability. Club Car’s Precedent with EFI enjoys a 35% power boost over our previous petrol engines while using 35% less fuel.

Meet E.R.I.C.: Your New Battery Valet

Efficient, Reliable, Intelligent, Connected

Learn More
AlumiCore™ Frame

AlumiCore™ Frame

An Aluminum Frame for Longer Life. Most golf cars are still built on steel frames, which can corrode. Club Car golf cars are built on our AlumiCore™ frame. This light frame is rustproof even in salt air, and it’s shaped to be more impact resistant than steel. It preserves the life of your car and enhances its stability, ride and performance.

Technical Specifications
Features  Electric Petrol
Engine/Motor Type 48-volt DC Subaru, 4-cycle
Controller 250 Amp – Solid State NA
Displacement NA 404 cc
Cylinders NA Single
Valving NA Overhead Cam
Cooling NA Air Cooled
Horsepower (Rated) 3.3 hp (2.4 kW) rated;
Peak 13 hp (9.6 kW)
14.0 hp (10.3 kW) rated
@ 3600 RPM per SAE J1940
Max Torque 34.5 ft-lb (46.7 N-m) rated
@ 1980 rpm
19.91 ft lb (27.0 N-m) rated
@ 2400 RPM
Lubrication NA Splash lubrication
Governor NA Ground Speed
Transmission Direct drive, double
reduction helical gear
Continuously Variable
Transmission (CVT)
Gear Selection Forward/Neutral/Reverse Forward/Neutral/Reverse
Gear Ratio 12.32:1 11.47:1 forward; 15.63:1 reverse
Ignition NA Capacitive Discharge
Battery (6) 8-volt Flooded Lead Acid 12-volt 500 CCA; 105 min Reserve
Charger ERIC (650 W High Frequency) NA
Headlights Optional Unitized Headlights Optional Unitized Headlights
Fuel Delivery System NA Electronic Fuel Injection (EFI)
Capacity NA 6.0 Gallons (22.7 L)
Steering Mechanism SportDrive™ with self-adjusting rack and pinion SportDrive™ with self-adjusting rack and pinion
Suspension (Front) Independent leaf spring with dual hydraulic shocks Independent leaf spring with dual hydraulic shocks
Suspension (Rear) Independent leaf spring with dual hydraulic shocks Independent leaf spring with dual hydraulic shocks
Brakes Rear-wheel, mechanical drum Rear-wheel, mechanical drum
Park Brake Foot Operated, Multi-lock Foot Operated, Multi-lock
Body (Front & Finish) Formion®, Molded-in color Formion®, Molded-in color
Body (Frame & Rear) Formion®, Molded-in color Formion®, Molded-in color
Tyres (Front) 18 x 8.50-8, 4-ply rated, premium tread 18 x 8.50-8, 4-ply rated, premium tread
Tyres (Rear) 18 x 8.50-8, 4-ply rated, premium tread 18 x 8.50-8, 4-ply rated, premium tread
Wheelbase 65.5 in (166.4 cm) 65.5 in (166.4 cm)
Overall Height 71 in. (180 cm) 71 in. (180 cm)
Overall Length 104 in (264.2 cm) 104 in (264.2 cm)
Ground Clearance (Differential) 4.5 in (11.4 cm) 4.5 in (11.4 cm)
Track Width (Front) 34.5 in (87.6 cm) 34.5 in (87.6 cm)
Track Width (Rear) 38.6 in (97.8 cm) 38.6 in (97.8 cm)
Max Width (w/o Mirrors) 47.3 in (120.1 cm) 47.3 in (120.1 cm)
Outside Clearance
Circle (dia.)
208 in (528.3 cm) 208 in (528.3 cm)
Turning Radius 104.4 in (265.2 cm) 104.4 in (265.2 cm)
Curb Weight w/ batteries 1024 lb (464.5 kg) 768 lb. (348 kg)
Vehicle Rated Capacity^ 800 lb (362.9 kg) 800 lb (362.9 kg)
Seating 4 4
Speed Programmable 12-15 mph (19-24 kph);
Optional 19 mph (30 kph)
Warranty 4 yr limited battery warranty;
3 yr limited powertrain/frame;
2 yr limited remaining vehicle
3 yr/3000 hr limited powertrain/frame;
2 yr limited remaining vehicle
